drawStairs

ModelicalDynamoPackage

Description

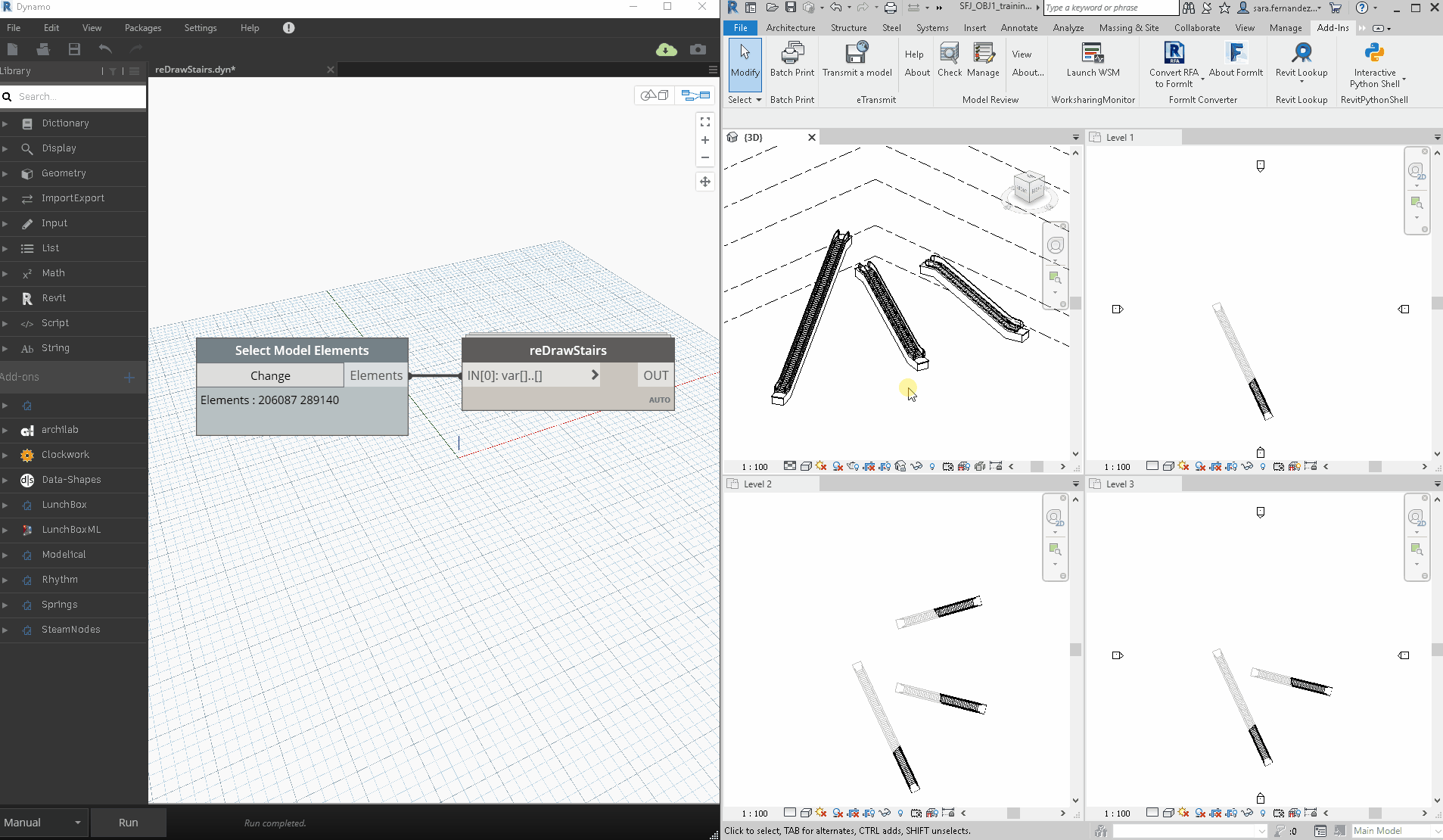

drawStairs reDrawStairs

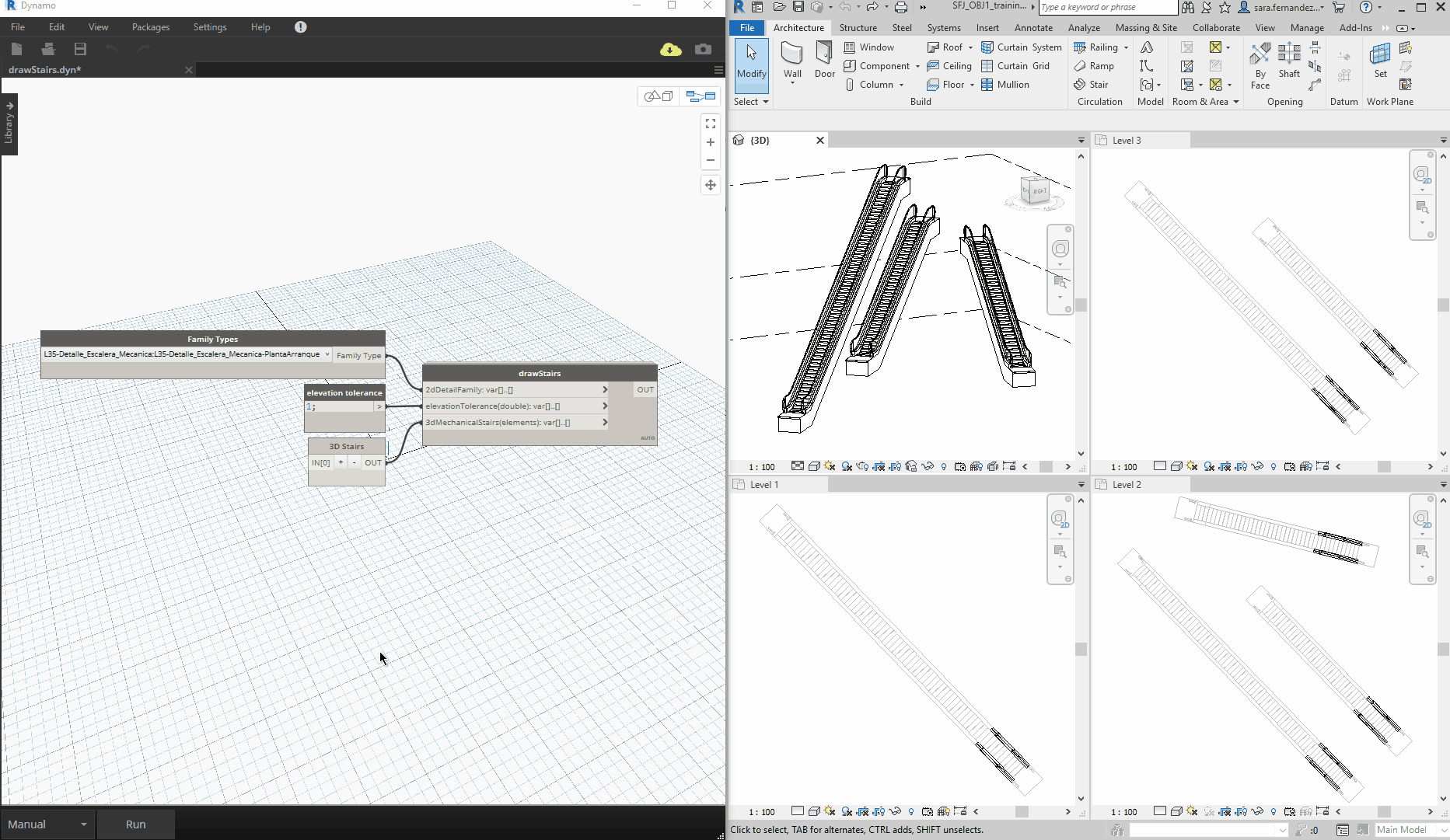

Developed for Revit, the node drawStairs allows to represent Mechanical Stairs accordingly to a certain graphism in floor plan views. The node reDrawStairs updates such 2D details accordingly to the changes of the 3D mechanical stairs. For further information see drawStairs Guideline: https://www.modelical.com/en/gdocs/drawstairs/

drawStairs

Platform

Revit. 2019

Type

Dynamo.

Download

Link
